Widget Section Element: Table

The table element can be used to information in a tabulated format whenever needed.

Syntax:


{
type : "table",
headers : []
rows : [{}]
button_references : {}
style :
{
	width : {},
        text_align : {}
}
}

Attributes:

Attribute NameValueDescription
typetableSpecifies the type of widget element. Value for the type key is 'table'.
headers

JSON Object

Maximum number of headers: 10

Maximum characters allowed: 30

JSON object carrying the header details of the table.
rows

Array list

Maximum number of rows: 100

Maximum characters allowed: 100

The rows to be added to the table.
button_references JSON Object The instant button object. To know more about button references, refer here
styleJSON ObjectSpecifies the style of the table, the width, and alignment of the rows and columns.

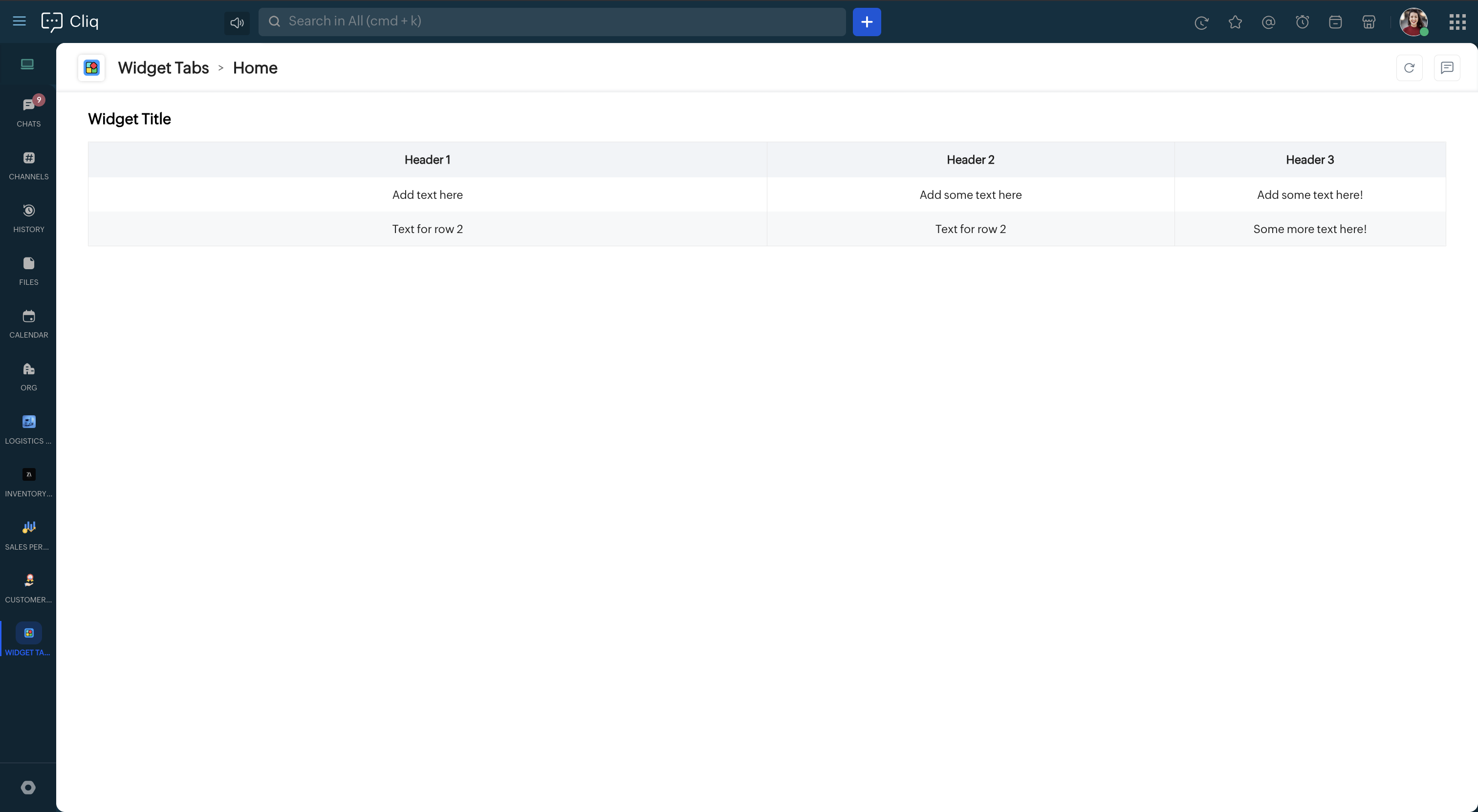

Example:


elements = list();
elements.add(
    {
        "type":"title",
        "text":"Widget Title"
    }
);
elements.add(
    {
        "type":"table",
        "headers":{
            "Header 1",
            "Header 2",
            "Header 3"
        },
        "rows":[
            {
                "Header 1":"Add text here",
                "Header 2":"Add some text here",
                "Header 3":"Add some text here!"
            },
            {
                "Header 1":"Text for row 2",
                "Header 2":"Text for row 2",
                "Header 3":"Some more text here!"
            }
        ],
        "style":{
                "width":{
                    "50",
                    "30",
                    "20"
                },
                "text_align":{
                    "center",
                    "center",
                    "center"
                }
        }
    }
);
sections = list();
sections.add(
    {
        "id":1,
        "elements":elements
    }
);
return {
    "type":"applet",
    "tabs":[
        {
            "label":"Home",
            "id":"homeTab"
        }
    ],
    "active_tab":"homeTab",
    "sections":sections
};
